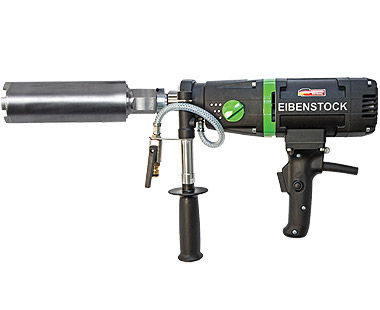

Diamond Core Drill (with optional accessories)

Description

The best Diamond Core Drill in its class!

The Diamond Core Drill combines a robust all-aluminum housing with a compact size and powerful 15 AMP motor. The heavy-duty design and power reserve make it suitable for continuous use.

Use hand-held for up to 3-1/4″ diameter and/or rig-mounted for up to 6″ diameter. The mechanical 3-speed gearbox allows the operator to select the best speed for the core bit diameter. The result is optimum drilling and longer tool life.

All models include a built-in leveling bubble, safety slip clutch, carrying case, water swivel, overload signal and Ground Fault Interrupter. Connecting threads of 5/8″ x 11 UNC, 1-1/4″x 7 UNC and G1/2″ fit all standard core bits.

• 3-speed oil bath gearbox – optimal lubrication
• Short, compact design for tight spaces
• All-aluminium housing
• Integrated level bubble on motor and handle for 90˚ drilling
• Side handle with connection for centering device or water collection
• Overload temperature control and GFCI overcurrent cut-off
• Overload indicator light turns red when motor is overloaded – allows operator to reduce the feed pressure and protect the motor
• Cut-off carbon brushes – protects the motor

Optional Accessories:

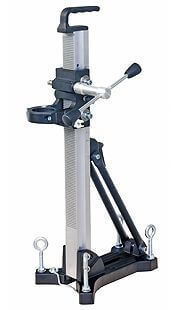

END 130/3.2 POSA – anchor stand without vacuum pump (see dropdown)

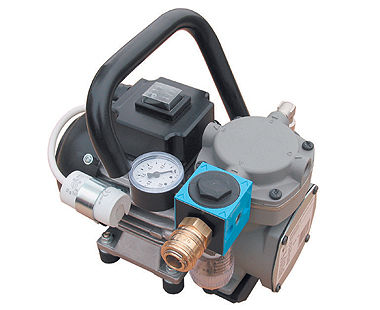

END 130/3.2 POSV – anchor stand with vacuum pump (see dropdown)
